What are Directed Acyclic Graphs (DAGs)? Simply put, they’re graphs with a set direction, like a one-way street, and no loops, ensuring you never revisit the same spot twice. Why does this matter? Because it’s a fundamental concept in organizing tasks, ensuring there’s a clear starting point and an order to follow is vital in understanding and leveraging DAGs across various industries. This article unpacks the concept, utility, and significance of DAGs to give you a solid grounding in what they are and why they’re so widely used.

Key Takeaways

• Directed Acyclic Graphs (DAGs) are directed graphs without cycles used to model dependencies and relationships, with applications in task scheduling, project management, and various fields including blockchain and epidemiology.
• Some of DAGs' properties, like topological ordering and transitive reduction, make it easier to show linear dependencies and analyze complex relationships. This makes it easier to do things like organize and compute.
• While DAGs offer benefits like clear visual representation, efficient path algorithms, and parallel execution, they also have limitations such as difficulty representing dynamic feedback systems and the complexity of managing large-scale workflows.

Defining Directed Acyclic Graphs (DAGs)

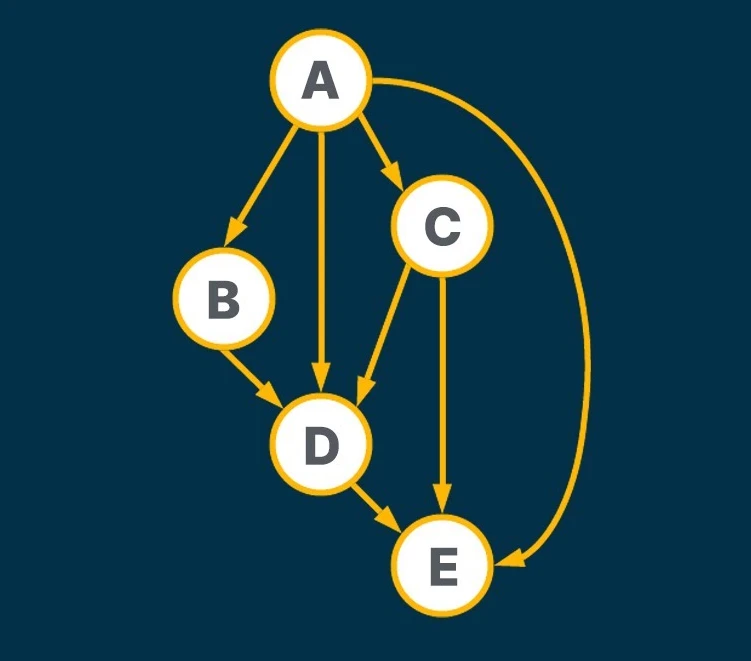

A Directed Acyclic Graph is commonly abbreviated as a DAG. It is a type of directed graph that does not have any cycles. This means that if you start from any vertex and follow a directed path, you will never return to the same vertex. The absence of cycles in DAGs is quite meaningful and plays a vital role in many of its applications.

DAGs are particularly utilized to depict dependencies or relationships among different entities. Imagine a complex project with numerous tasks, some of which depend on others. A DAG can be used to represent those tasks and their dependencies, with each vertex in the graph representing a task and the directed edges between them indicating their dependencies. The reachability of one vertex from another, following a directed path, is integral to understanding these dependencies.

Directed Graphs vs. Undirected Graphs

To fully appreciate the power of DAGs, it’s crucial to understand the distinction between directed and undirected graphs. In graph theory, a directed graph has edges with orientation, indicating a direction of relationship or pathway from one vertex to another in the same direction. This directionality is what sets directed graphs apart from their undirected counterparts, where edges are simple lines without any assigned direction.

In the context of DAGs, the directed edges establish a clear path of influence or sequence, a critical aspect absent in undirected graphs. This property of DAGs enables the representation of dependencies and hierarchy in a way that is not possible with undirected graphs. For instance, in a project management scenario, directed edges can illustrate the sequence in which tasks need to be executed, ensuring a smooth workflow.

The Acyclic Property of DAGs

The acyclic property of DAGs is another distinguishing feature that adds to their appeal. In an acyclic graph, there is no path that would lead back to the same vertex or the same node if you followed an edge from any given vertex, making cycles impossible. This characteristic is essential for topological sorting, a process that enables the ordering of nodes in such a way that each node is visited only after all its dependencies have been visited.

The absence of cycles in a DAG is both a property and a condition. During the topological sorting process, if a cycle is detected, it signifies that the graph is not acyclic; therefore, it cannot be a DAG and cannot be topologically sorted. This absence of directed cycles in a DAG is what makes it a powerful tool in managing dependencies, scheduling tasks, and many other applications.

Essential Properties of Directed Acyclic Graphs

While we’ve already touched upon a few, DAGs boast several other unique properties. Two of these—topological ordering and transitive closure and reduction—are particularly noteworthy. A topological ordering in a DAG is a linear arrangement of its vertices such that for every directed edge from vertex u to vertex v, u comes before v in the ordering. In other words, in a topological ordering, each node is only reached once all its preceding nodes have been visited. One way to represent these relationships is by using an adjacency matrix.

Transitive closure and reduction are two other pivotal properties of DAGs. The transitive closure of a DAG extends the graph by adding the maximum number of edges while preserving the original reachability relation, demonstrating if one vertex is reachable from another. On the other hand, the transitive reduction of a DAG maintains the reachability relation of the original graph but with the fewest possible connections, thereby conserving its structure.

Topological Ordering

As mentioned earlier, topological ordering of a DAG is a sequence of its vertices such that for every directed edge from vertex u to vertex v, u comes before v in the sequence. In other words, it establishes a hierarchy among the vertices (or nodes) based on their dependencies. It is a fundamental property of DAGs and is instrumental in a multitude of applications, including task scheduling and dependency management.

Topological sorting is an algorithmic problem that seeks to find the topological ordering of a DAG and can be achieved in linear time using methods such as Kahn’s algorithm. It is noteworthy that every DAG has at least one topological ordering due to its acyclic nature. Such an ordering can reveal the reachability relations within the graph by representing linear extensions of partial orders.

Transitive Closure and Reduction

Transitive closure and reduction are two methods used to analyze reachability relations in a DAG. Transitive closure in DAGs is a method for determining which vertices are reachable from a given vertex. It extends the graph by adding the maximum number of edges while maintaining the original reachability relation. This property is instrumental in determining the influence of one vertex over another, especially in applications involving causal inference.

On the other hand, transitive reduction is the process of obtaining a minimal set of edges that maintains the original reachability relations. This process often results in length-one paths that are the unique connectors of their endpoints. Essentially, it conserves the structure of the graph while reducing the complexity of its connections, thereby making it easier to analyze and interpret.

Real-Life Applications of DAGs

With a solid understanding of the properties and characteristics of DAGs under our belt, it’s time to delve into the myriad of their real-world applications. From blockchain technology to epidemiology, the use of DAGs is not confined to theoretical discussions but extends to practical applications that impact our daily lives.

In the realm of blockchain technology, DAG-based systems are gaining popularity as they address scalability issues associated with traditional blockchains, enable rapid transaction execution, and adopt energy-efficient consensus mechanisms. Beyond blockchain, DAGs are employed in epidemiology to estimate intervention outcomes and represent family trees, showcasing the versatility of DAG applications in various sectors.

Task Scheduling and Dependency Management

One of the most common applications of DAGs is in task scheduling and dependency management. For instance, in a project management scenario, each task could represent a vertex, and the dependencies between tasks could represent directed edges. In a weighted DAG, vertices are tasks with weights symbolizing computational size, while edges with weights represent communication costs between tasks.

Topological sorting is employed in DAGs to find a valid sequence for processing tasks that have interdependencies, ensuring the correct task execution order. DAGs are also applied in data engineering to organize workflows and data pipelines, guide task execution, and prevent deadlocks in processes.

Causal Inference and Data Flow Analysis

DAGs play a pivotal role in causal inference and data flow analysis, particularly in research and software development. In clinical and epidemiologic research, DAGs are used to frame causal questions, inform study design, guide statistical analysis, and identify causal effects while eliminating confounding and selection biases.

In a DAG, vertices represent events that occur at a specific point in time, and the edges represent causal relationships that point from an earlier event (cause) to a later event (effect). In cases where an edge occurs earlier, DAGs serve as essential structures in scenarios like software compilation and spreadsheet recalculations, where the correct sequence of updates needs to be determined based on dependencies among objects. This causal structure helps in understanding the flow of events and their impact on the overall system.

Researchers can use DAGs to see how selection processes can lead to bias and false connections between variables in data sets, like exposure and disease. This helps them find relationships that might not be what they seem to be.

Advantages and Limitations of Using DAGs

While the advantages of DAGs are quite impressive, it’s also important to acknowledge the limitations and challenges associated with them. Like every data structure and algorithm, DAGs have their strengths and weaknesses, and understanding both is crucial for their effective application.

DAGs provide numerous benefits, including:

• Enabling efficient path algorithms due to their structure
• Providing a clear visual representation of dependencies
• Allowing parallel execution
• Enhancing the reproducibility of scientific experiments
• Ease of monitoring and debugging processes.

Advantages of DAGs

The advantages of DAGs are manifold. Here are some of them:

• Their ability to enable efficient path algorithms sets them apart from other data structures.
• A DAG’s structure allows for clear visualization and management of complex dependency relationships.
• They are particularly useful in project management and data engineering applications.

Another significant advantage of DAGs is their ability to facilitate parallel execution. In a DAG, tasks (vertices) that do not have dependencies can be executed simultaneously, leading to optimized workflow and time management. Furthermore, DAGs enhance the reproducibility of scientific experiments and make it easier to monitor and debug processes, adding to their appeal in various industries.

Limitations and Challenges

Despite their numerous advantages, DAGs come with certain challenges and limitations. For instance, DAG-based systems often require solving NP-hard graph optimization problems, which can be computationally expensive and pose significant challenges. Also, the lack of comprehensive, systematic work to summarize the techniques for using DAGs creates a barrier to understanding and limits their broader adoption.

Furthermore, the complexities of DAGs can make them unwieldy in large workflows and less adaptable for dynamic workflows, leading to management and flexibility issues. Another limitation is their inability to represent processes with feedback loops, making them less suitable for dynamic systems where processes are interdependent and influence each other over time.

Techniques for Working with DAGs

Now that we have a good understanding of DAGs, their properties, applications, advantages, and limitations, it’s time to delve into some techniques for working with them. Two of these techniques, topological sorting and path algorithms on DAGs, are particularly important to understand.

These techniques unlock the full potential of DAGs and enable us to utilize them efficiently in various applications. They are instrumental in the effective use of DAGs in task scheduling, dependency management, causal inference, and more. Tools such as Apache Airflow and Apache Spark are also commonly employed for implementing DAGs in data environments, with the choice depending on project complexity, data scale, and integration requirements.

Topological Sorting

Topological sorting is one of the key techniques employed when working with DAGs. It provides a linear order of vertices in a DAG based on their dependencies, ensuring vertices are processed in a way that respects these dependencies. This process can be achieved in linear time using methods such as Kahn’s algorithm.

It’s interesting to note that a DAG can have multiple valid topological orderings. The final sorted order can be achieved by reversing the order of vertices popped from a stack after all have been processed. This flexibility in topological ordering makes DAGs versatile and adaptable to a variety of applications.

Path Algorithms on DAGs

Another important technique for working with DAGs is the implementation of path algorithms. By processing vertices in accordance with their topological order, shortest paths in weighted DAGs can be calculated in linear time. This efficiency is one of the key reasons why DAGs are preferred in a multitude of applications, including:

• Task scheduling
• Dependency resolution
• Data flow analysis
• Compiler optimization

In these applications, where time complexity is a critical factor, DAGs provide a significant advantage.

The directed and acyclic nature of DAGs is what allows path algorithms to make use of topological ordering, yielding highly efficient path computations. Path algorithms on DAGs are a powerful tool for data analysis and management because of their efficiency and the simplicity of interpretation they offer.

Directed Acyclic Graphs in Modern Technologies

While we’ve explored how DAGs are used in traditional fields such as project management and research, it’s also interesting to note their applications in modern technologies. DAGs play a crucial role in technologies such as Git version history and data processing networks, demonstrating their relevance and utility in today’s data-centric world.

DAG-based blockchain models, for instance, can handle high volumes of transactions in parallel, leading to increased scalability and improved throughput. However, they do face challenges with achieving a high degree of decentralization, partly due to lower adoption rates compared to more established blockchain networks.

Besides blockchain, DAGs are also used to represent a network of processing elements in electronic circuit design.

Git Version History

One of the most popular applications of DAGs in modern technology is in Git version history. Git uses DAGs to represent version history and manage software development projects. Each vertex corresponds to a revision, and the edges denote the parent-child relationship between revisions.

The DAG structure in Git ensures that the history of changes is well-organized and enables features such as branching and merging, which are essential in distributed software development. By utilizing the properties of DAGs, Git offers a robust and efficient system for version control, making it a favorite among developers worldwide.

Data Processing Networks

In the realm of data processing networks, DAGs have proven to be extremely useful. In stream processing, DAGs model multiple processing paths, with each vertex representing a step in processing to accommodate various outputs. This application of DAGs facilitates efficient data processing and aids in the handling of large data streams.

DAGs are also crucial in Bayesian networks, enabling the representation of systems of probabilistic events and calculation of an event’s likelihood based on its predecessors. Moreover, feedforward neural networks, a type of artificial neural network, are structurally related to DAGs, further demonstrating the versatility and wide-ranging applications of these graphs.

Summary

In the journey through this blog post, we have explored Directed Acyclic Graphs (DAGs), their properties, applications, advantages, limitations, and the techniques to work with them. From task scheduling and dependency management to data flow analysis and modern technologies, the wide-ranging applicability of DAGs is truly impressive. Despite their limitations, DAGs offer distinct advantages, making them valuable in applications such as causal inference and task scheduling. As we continue to navigate the ever-evolving landscape of data structures and algorithms, DAGs remain a powerful tool, helping us make sense of complex relationships and dependencies.

Frequently Asked Questions

What is a Directed Acyclic Graph (DAG)?

A Directed Acyclic Graph (DAG) is a directed graph that does not contain any cycles, meaning you won't return to the same vertex if you follow a directed path.

How does a DAG differ from an undirected graph?

DAGs differ from undirected graphs in that they have edges with orientation that indicate a direction of relation or pathway from one vertex to another, establishing a clear path of influence or sequence.

What is topological ordering in a DAG?

In a Directed Acyclic Graph (DAG), a topological ordering is a linear arrangement of its vertices that establishes a hierarchy based on their dependencies. This ordering ensures that for every directed edge from vertex u to vertex v, u comes before v.

What are some real-life applications of DAGs?

DAGs have wide-ranging applications, including task scheduling, dependency management, causal inference, data flow analysis, Git version history, data processing networks, and blockchain technology. These applications demonstrate the versatility and relevance of DAGs in various fields.

What are the advantages and limitations of using DAGs?

In conclusion, DAGs offer efficient path algorithms and clear visual dependency representation, allowing parallel execution. However, they can be computationally expensive for solving NP-hard graph optimization problems and are less suitable for workflows with feedback loops.
